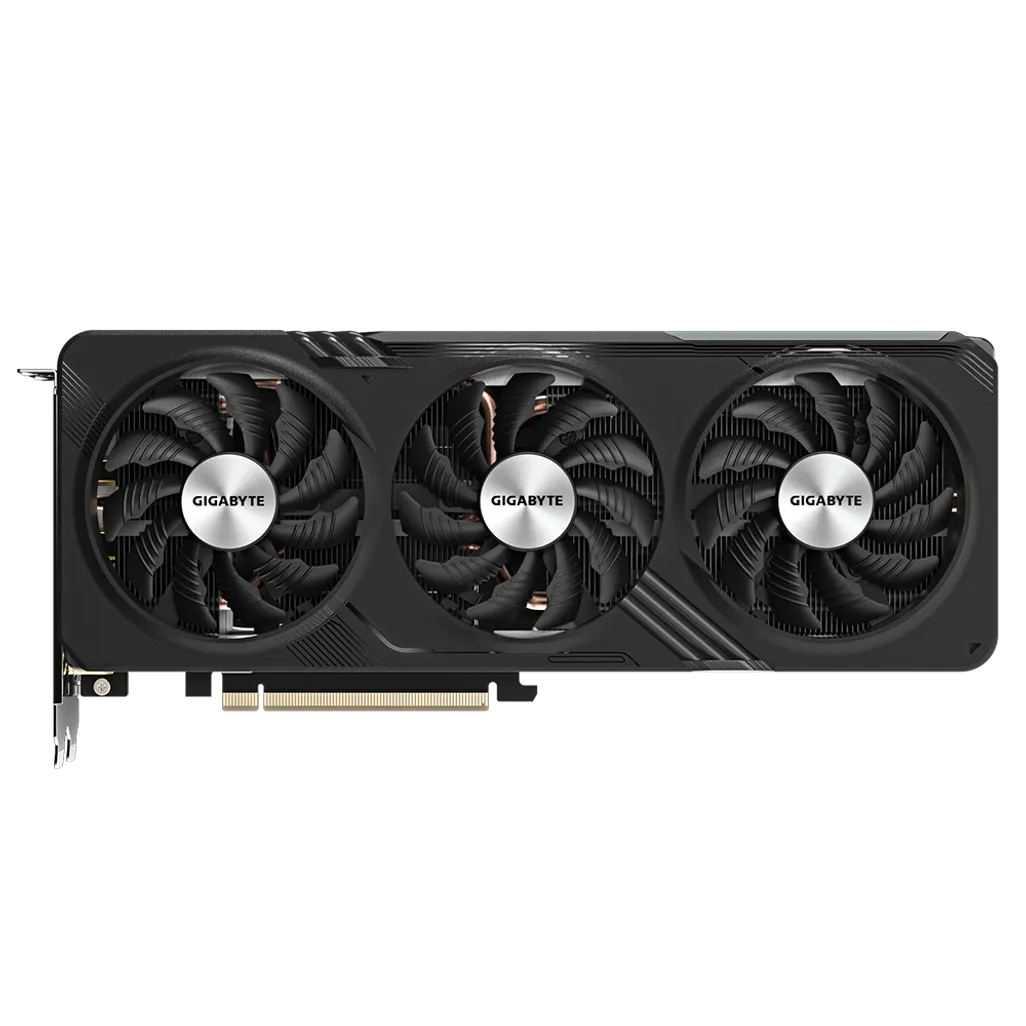

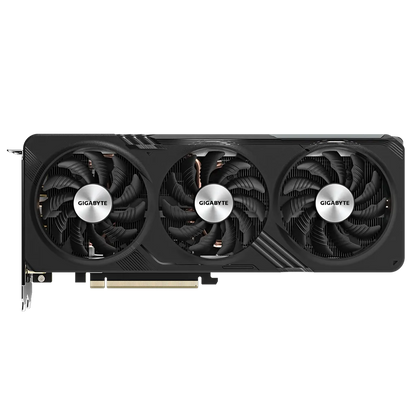

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Specification
| Graphics Processing | GeForce RTX™ 4060 Ti |
| Core Clock | 2580 MHz (Reference card: 2535 MHz) |
| CUDA® Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=281 W=117 H=53 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8 pin*1 |
| Output |
DisplayPort 1.4a*2 HDMI 2.1a*2 |
| Accessories | Quick guide |
