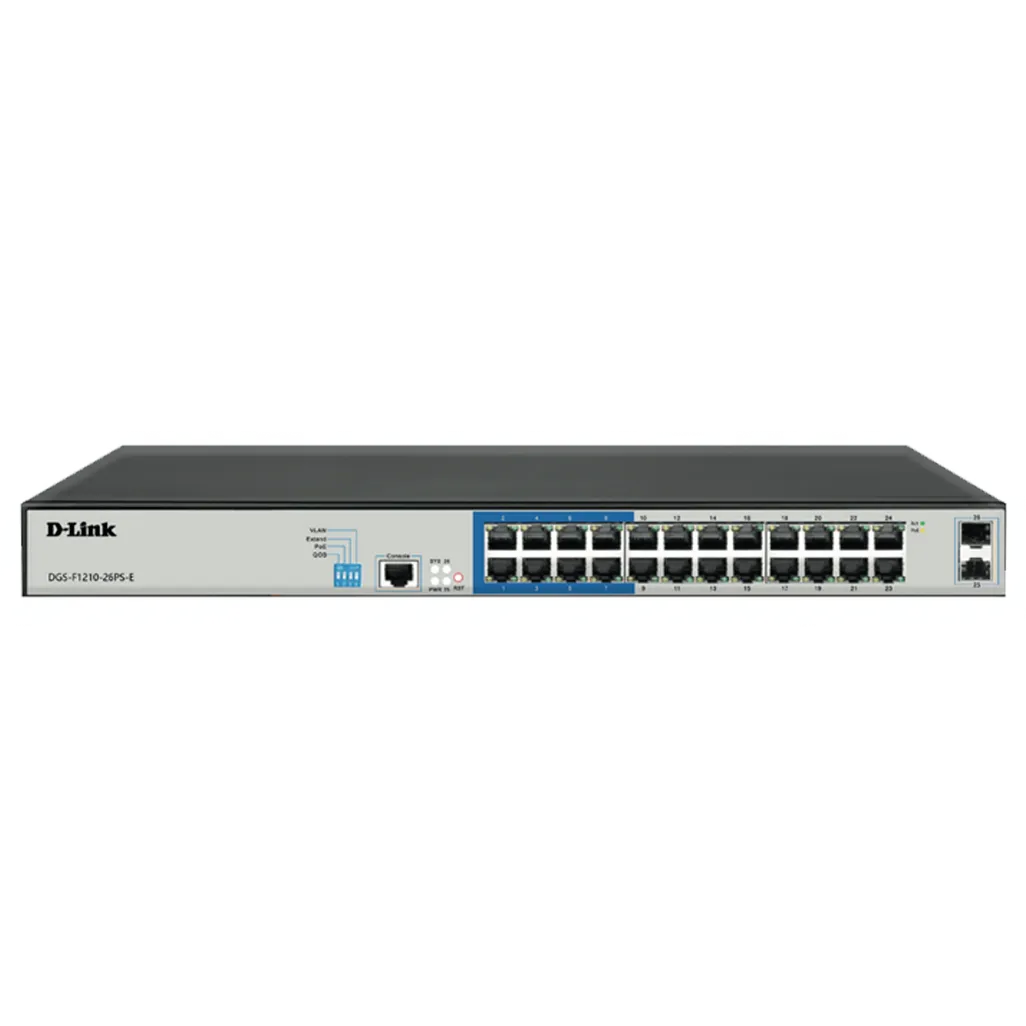

D-Link DGS-F1210-26PS-E 24-Port Layer 2 Gigabit Managed Long Range PoE+ Surveillance Switch

D-Link DGS-F1210-26PS-E 24-Port Layer 2 Gigabit Managed Long Range PoE+ Surveillance Switch

R 5,536.02 ZAR
R 5,536.02 ZAR
Sale AVAILABLE FOR BACKORDER
Shipping calculated at checkout.

D-Link DGS-F1210-26PS-E 26-Port Smart Managed Gigabit PoE+ Switch

The DGS-F1210-26PS-E is a Layer 2 smart-managed switch designed for SMBs and surveillance deployments. It features 24 Gigabit PoE ports and 2 SFP uplink ports, offering advanced management capabilities, extended PoE range, and robust security features.

Key Features

  • 24 x 10/100/1000 Mbps PoE+ RJ-45 ports
  • 2 x Gigabit SFP uplink ports
  • IEEE 802.3af/at PoE support, up to 30W per port
  • Total PoE power budget of 250W
  • Extended PoE range up to 250 meters on select ports
  • Switching capacity of 52 Gbps
  • Advanced Layer 2 features including VLAN, QoS, and IGMP Snooping
  • Surge protection up to 6 kV on all ports
  • Web-based management interface

Technical Specifications

Specification Details
Model DGS-F1210-26PS-E
Switch Type Layer 2 Smart Managed
Ports 24 x 10/100/1000 Mbps PoE+ RJ-45, 2 x Gigabit SFP
PoE Standards IEEE 802.3af/at
PoE Power Budget 250 W total
Switching Capacity 52 Gbps
Forwarding Rate 38.7 Mpps
MAC Address Table 8K entries
Packet Buffer Memory 4.1 Mbits
Flash Memory 16 MB
DRAM 128 MB
Max Power Consumption 18 W (PoE off), 250 W (PoE on)
Dimensions (W x D x H) 440 x 180 x 44 mm
Weight 3.0 kg
Operating Temperature 0 to 40 °C
Operating Humidity 10% to 90% non-condensing
Surge Protection 6 kV on all ports
DIP Switch Modes VLAN, Extend (250m), QoS, PoE Watchdog
Management Features Web UI, VLAN, QoS, IGMP Snooping, Link Aggregation, Port Mirroring, ACLs
Security Features 802.1X, DHCP Snooping, IP-MAC-Port Binding, DoS Protection, ARP Inspection

In the Box

  • DGS-F1210-26PS-E Switch
  • Power Cable
  • Rack Mount Kit
  • Quick Installation Guide
