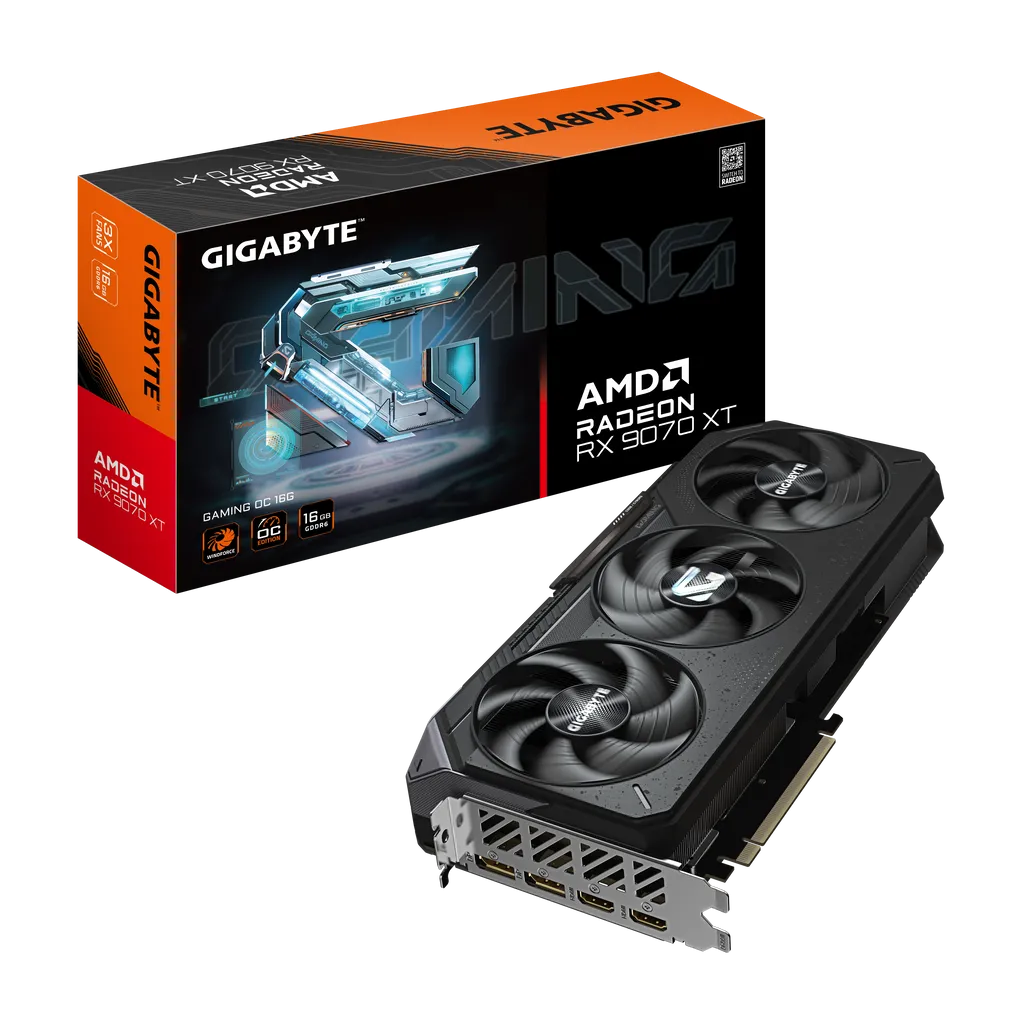

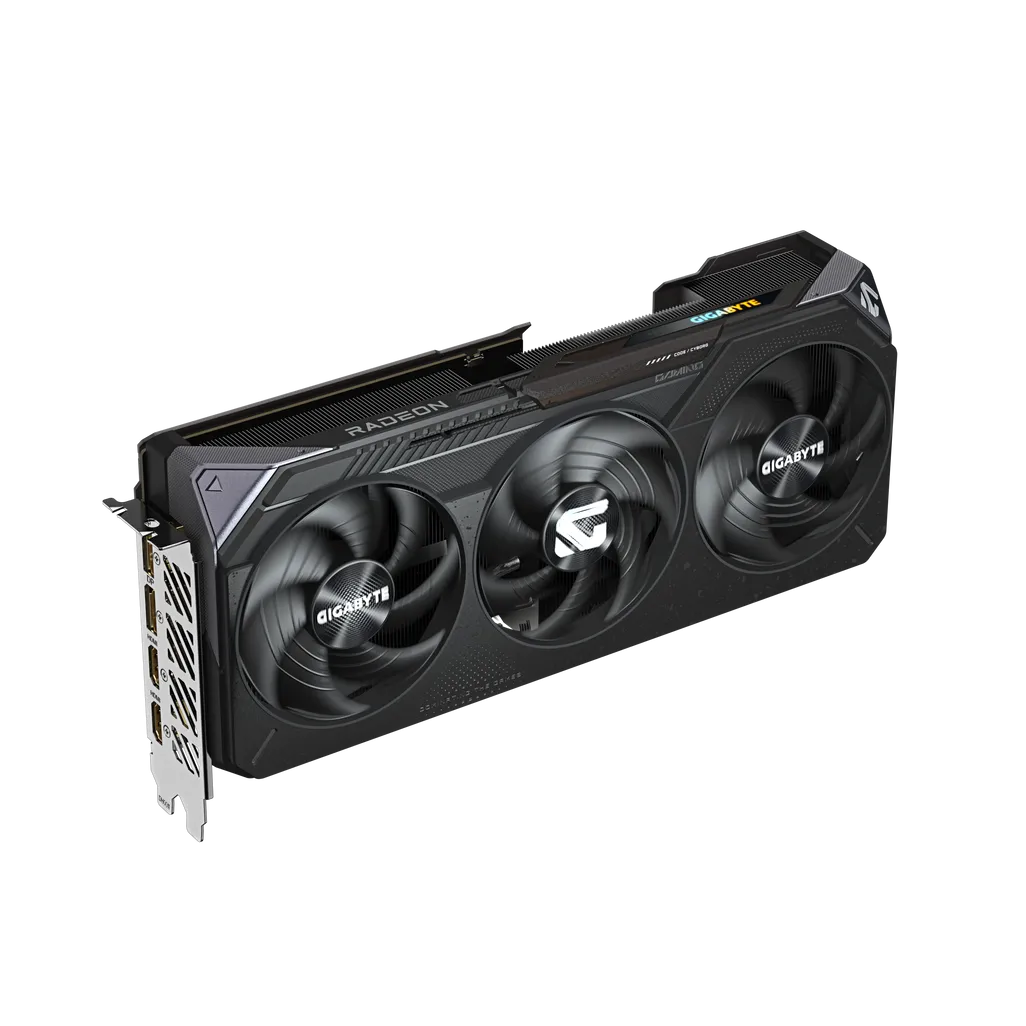

Radeon™ RX 9070 XT GAMING OC 16G

•  Powered by Radeon™ RX 9070 XT
•  Integrated with 16GB GDDR6 256bit memory interface
•  WINDFORCE cooling system
  •  Hawk fan
  •  Server-grade Thermal conductive gel
•  RGB Lighting
•  Dual BIOS (Performance / Silent)
•  Reinforced structure

CORE CLOCK

Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)

Specification

• Graphics Processing
  Radeon™ RX 9070 XT
• Core Clock
  Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz)
  Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
• Stream Processors
  4096
• Memory Clock
  20 Gbps
• Memory Size
  16GB
• Memory Type
  GDDR6
• Memory Bus
  256 bit
• Card Bus
  PCI-E 5.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=288 W=132 H=56 mm
• PCB Form
  ATX
• DirectX
  DirectX 12 API
• OpenGL
  4.6
• Recommended PSU
  850W
• Power Connectors
  8 pin*3

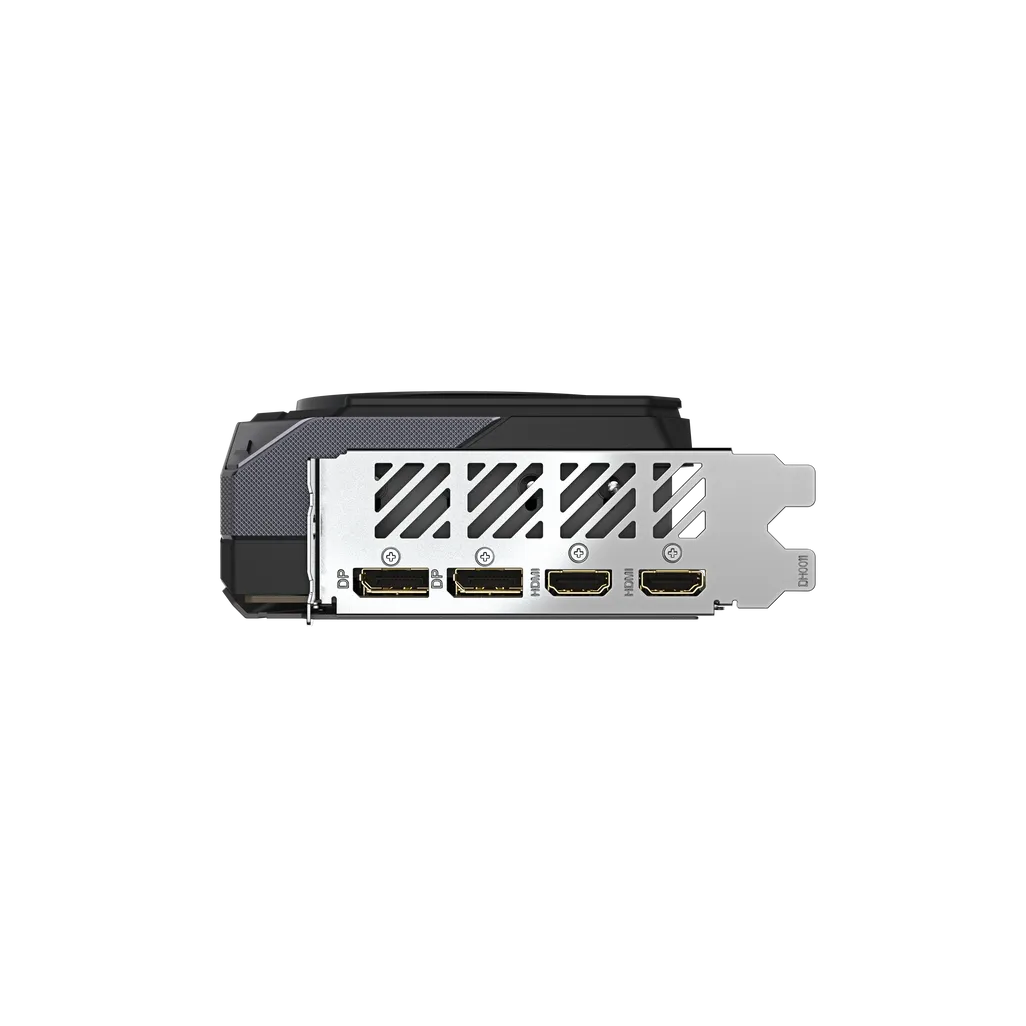

• Output
  DisplayPort 2.1a *2
  HDMI 2.1b *2
• Accessories
  Quick guide
• Note
  Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151
  * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147




  HAWK FAN

  The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

  LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE

  The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

  SCREEN COOLING

  Extended heatsink allows air to pass through, providing better heat dissipation.
