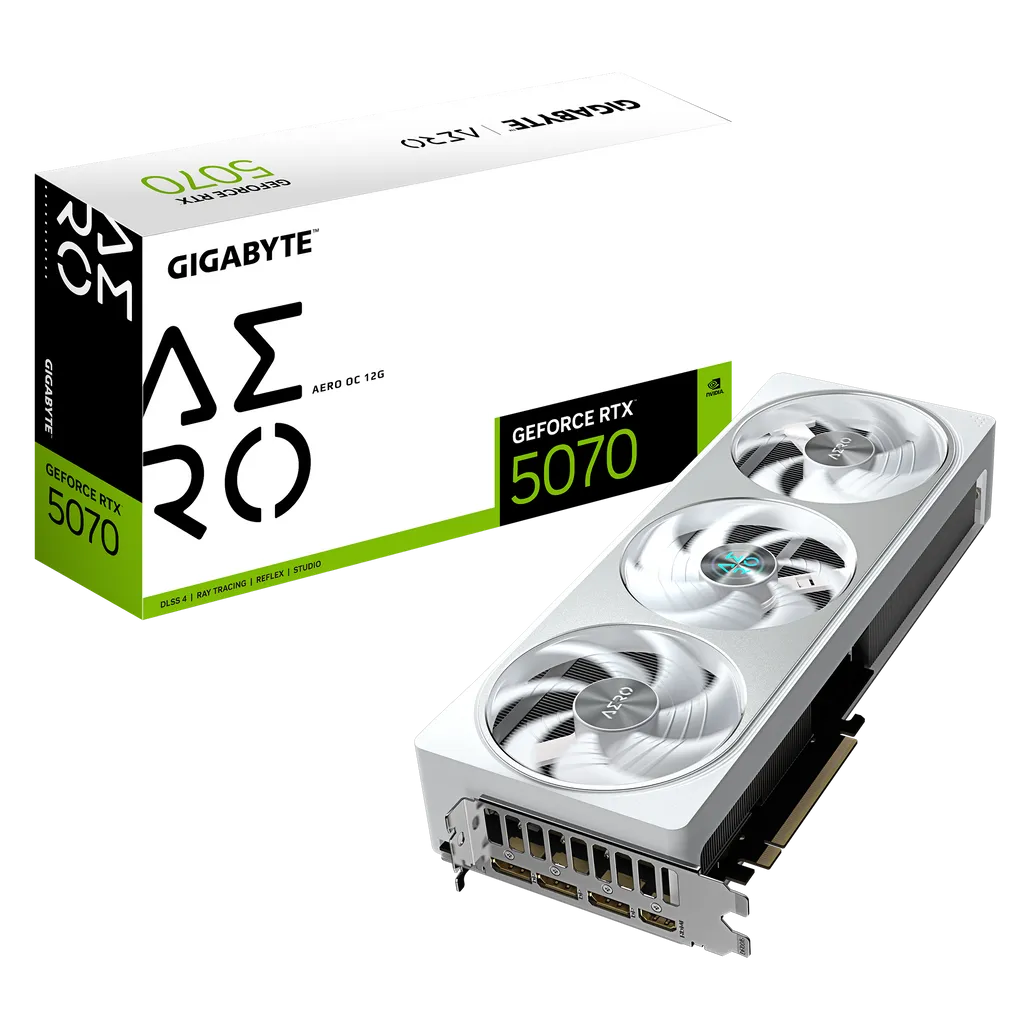

GeForce RTX™ 5070 AERO OC 12G

CORE CLOCK

2625 MHz (Reference card : 2512 MHz)

Specification

• Graphics Processing
  GeForce RTX™ 5070
• Core Clock
  2625 MHz (Reference card : 2512 MHz)
• CUDA® Cores
  6144
• Memory Clock
  28 Gbps
• Memory Size
  12 GB
• Memory Type
  GDDR7
• Memory Bus
  192 bit
• Card Bus
  PCI-E 5.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=324 W=130 H=56 mm
• PCB Form
  ATX
• DirectX
  DirectX 12 API
• OpenGL
  4.6
• Recommended PSU
  750W
• Power Connectors
  16 Pin*1

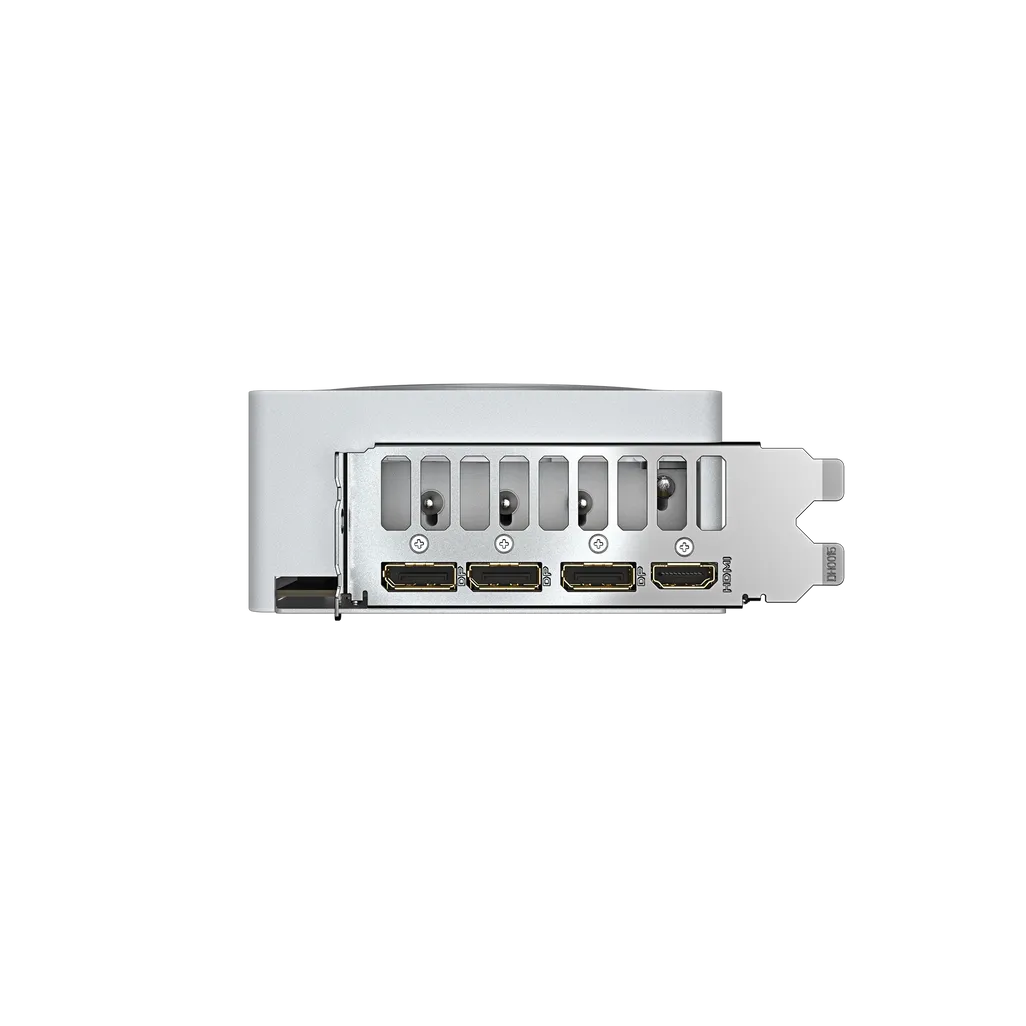

• Output
  DisplayPort 2.1b *3
  HDMI 2.1b *1
• Accessories
  1. Quick guide
  2. Warranty registration
  3. 1x 12V-2x6 to 2x PCIe 8pin adapter
  4. Versatile VGA holder
  5. Versatile VGA holder manual




  WINDFORCE
  COOLING SYSTEM

  The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

  HAWK FAN

  The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

  SERVER-GRADE THERMAL CONDUCTIVE GEL

  To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

  LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

  The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
