Gigabyte

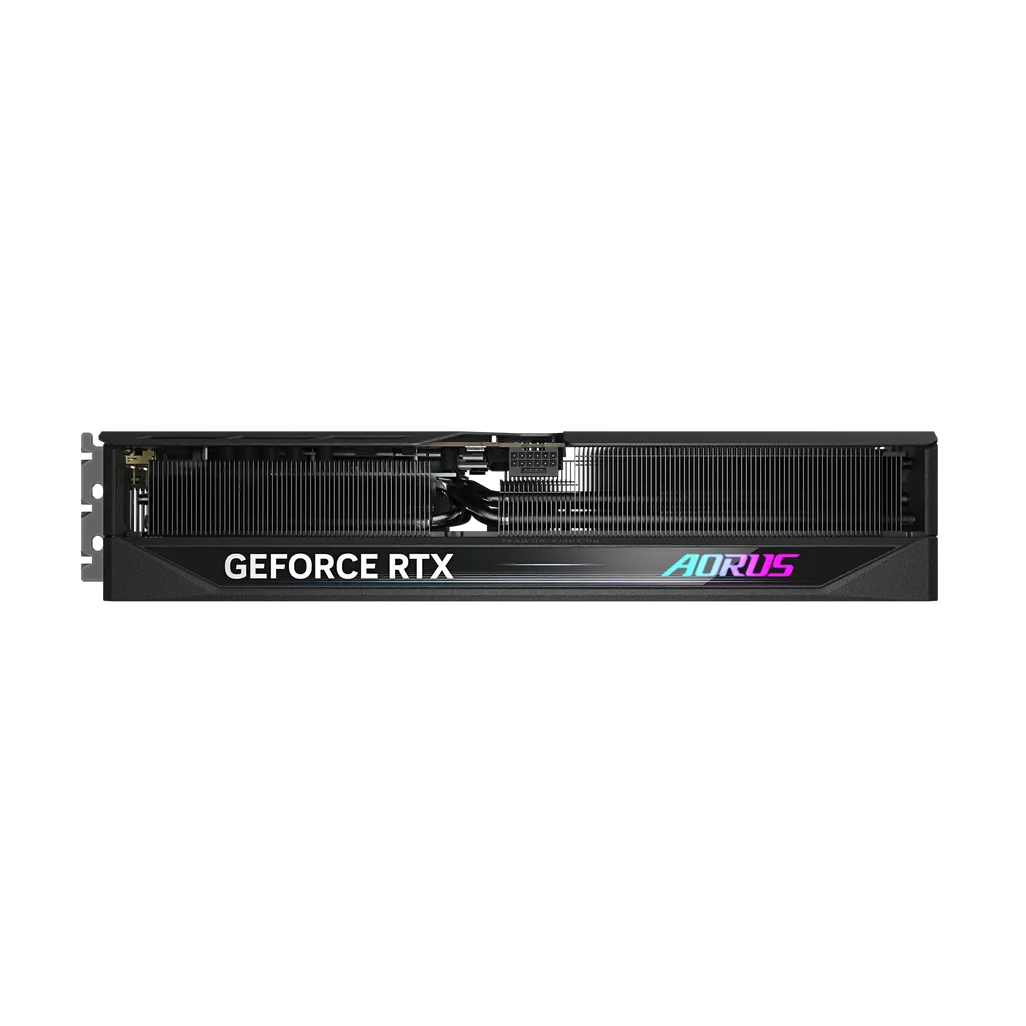

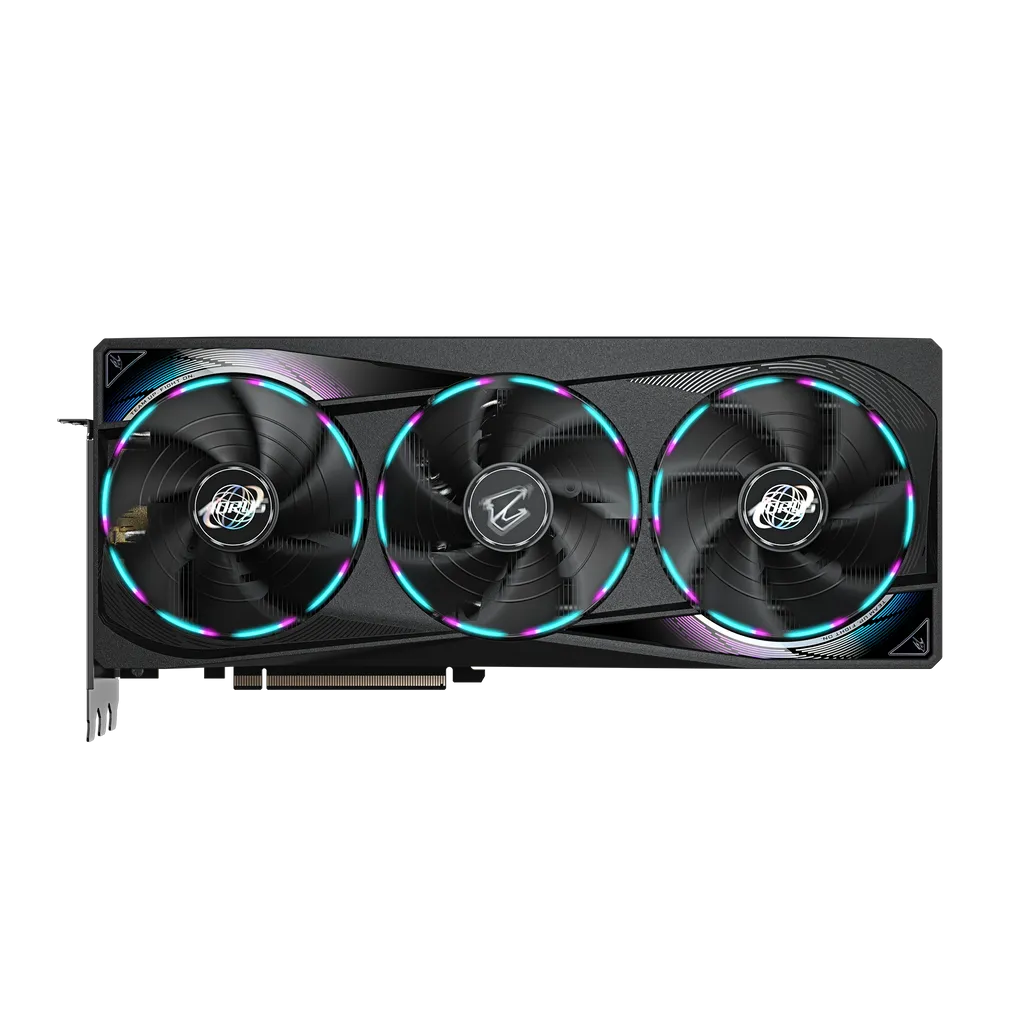

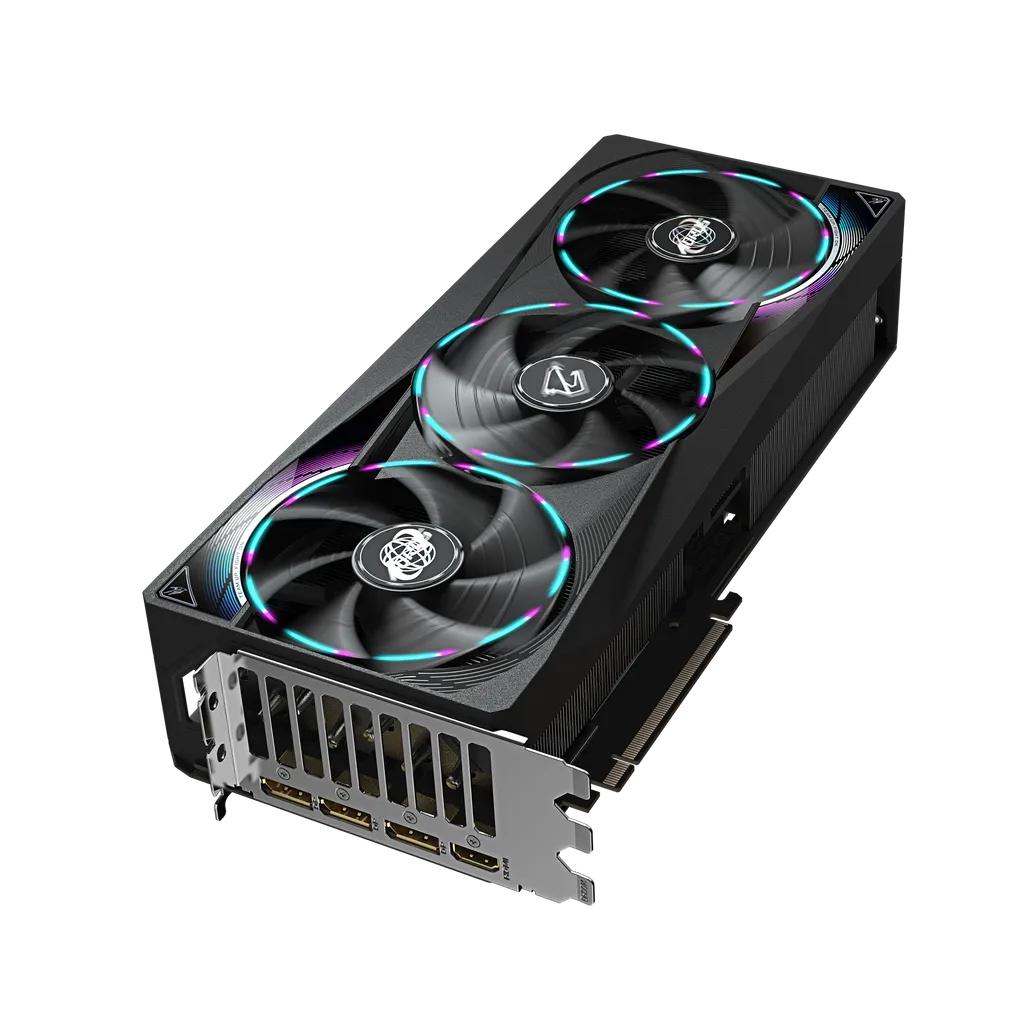

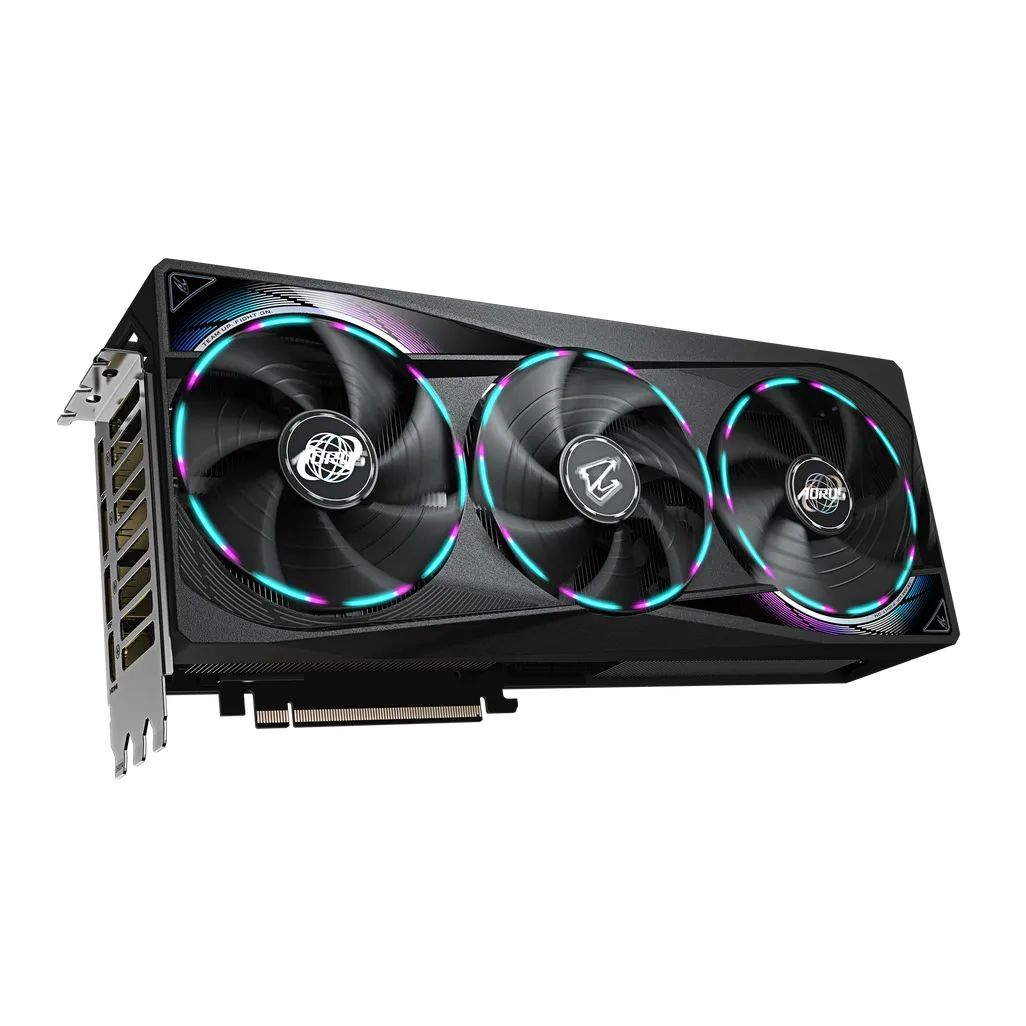

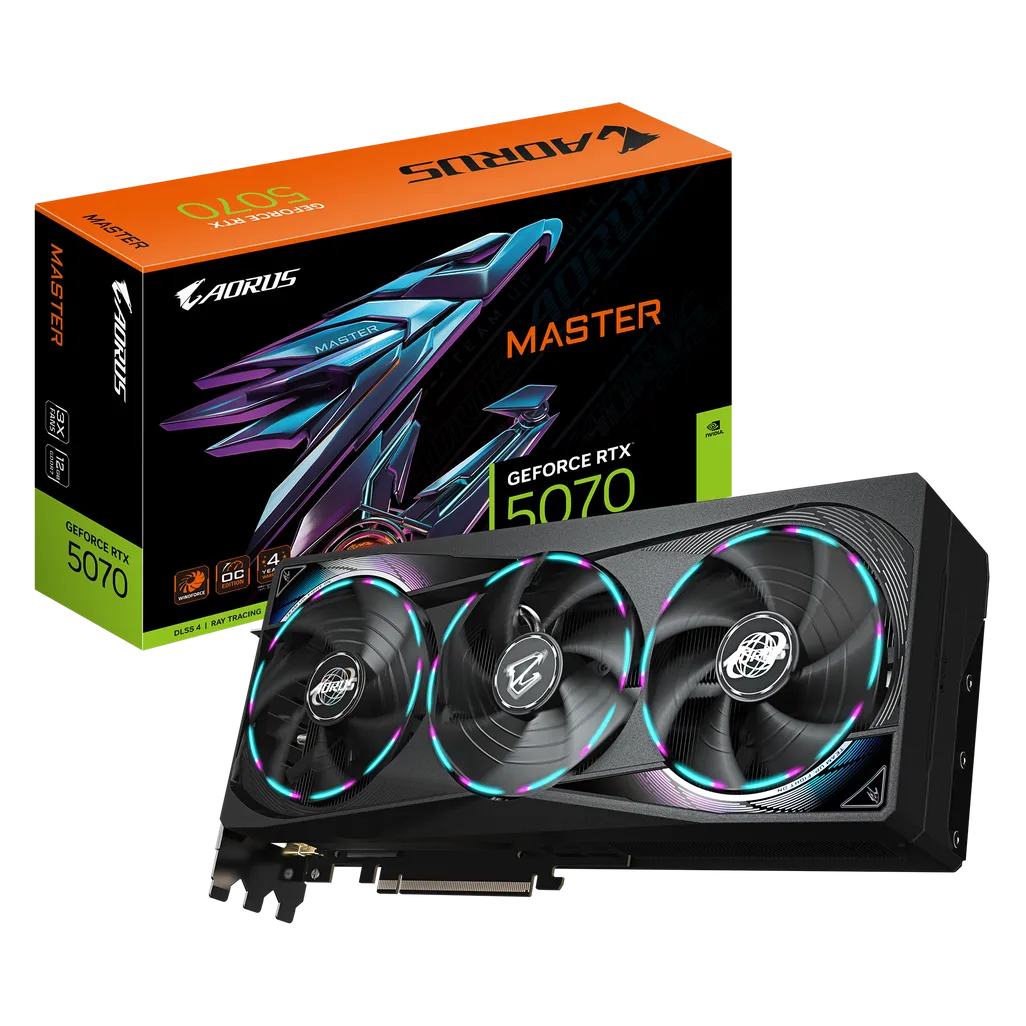

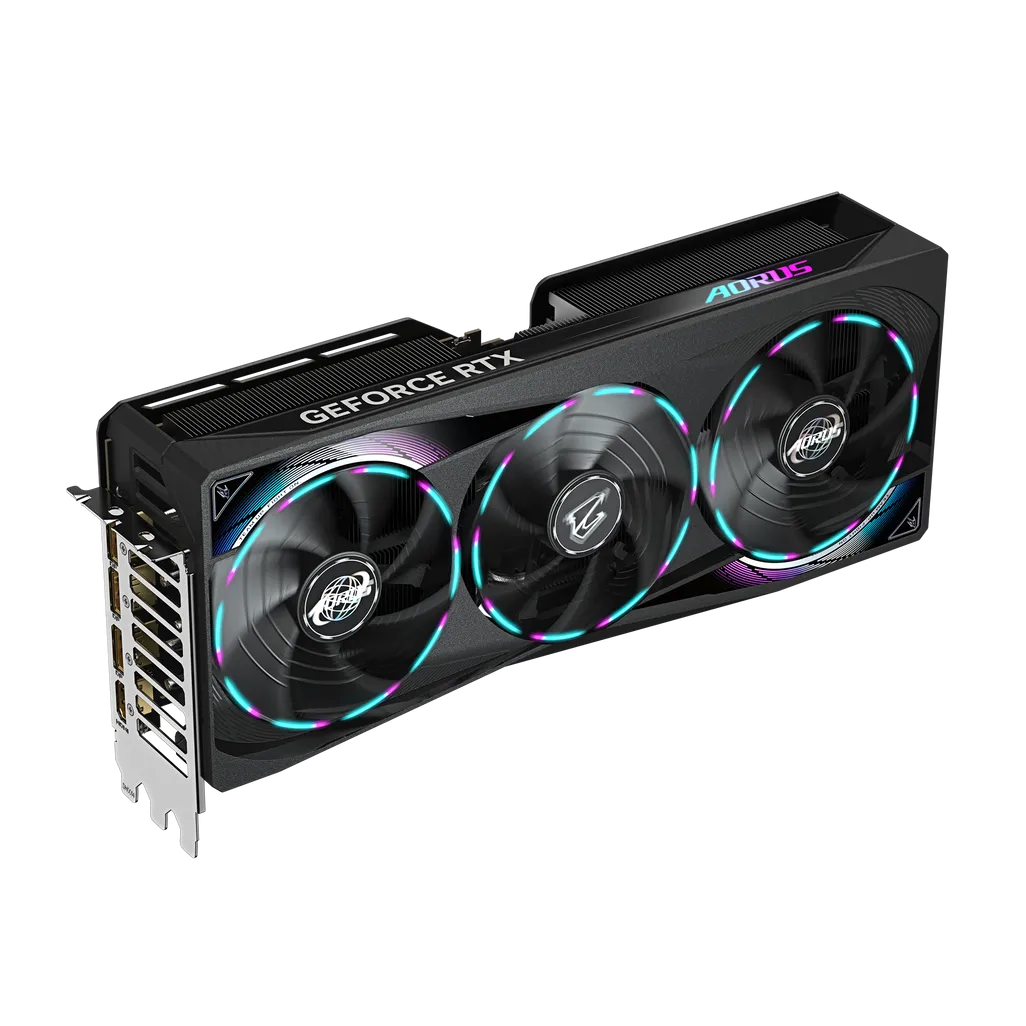

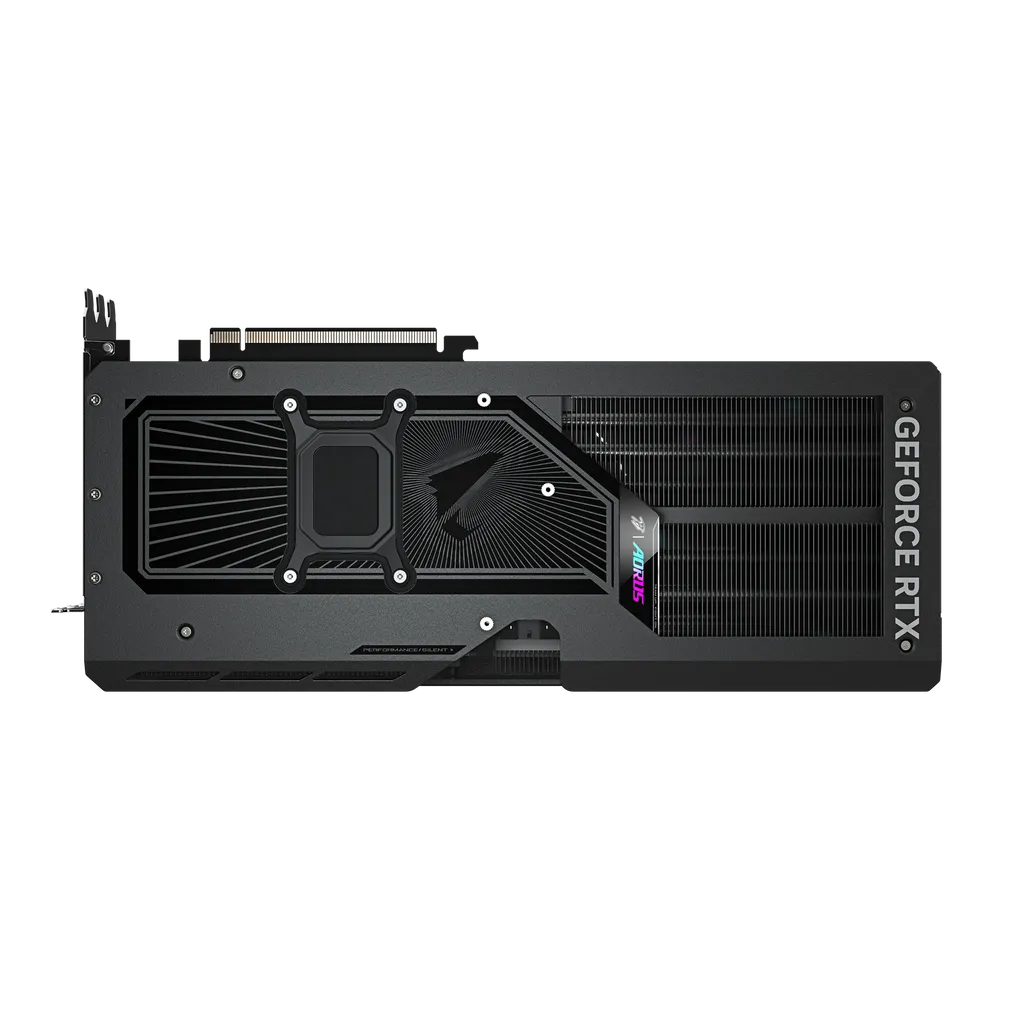

AORUS GeForce RTX™ 5070 MASTER 12G
AORUS GeForce RTX™ 5070 MASTER 12G
Couldn't load pickup availability
FEATURESFEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5070
- Integrated with 12GB GDDR7 192bit memory interface
-
WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- RGB Halo
- Dual BIOS (Performance / Silent)
- Reinforced structure
- Versatile VGA holder
- 4 years warranty (Online registration required)
CORE CLOCK
2715 MHz (Reference card : 2512 MHz)
-
Graphics ProcessingGeForce RTX™ 5070
-
Core Clock2715 MHz (Reference card : 2512 MHz)
-
CUDA® Cores6144
-
Memory Clock28 Gbps
-
Memory Size12 GB
-
Memory TypeGDDR7
-
Memory Bus192 bit
-
Card BusPCI-E 5.0
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=317 W=136 H=64 mm
-
PCB FormATX
-
DirectXDirectX 12 API
-
OpenGL4.6
-
Recommended PSU750W
-
Power Connectors16 Pin*1
-

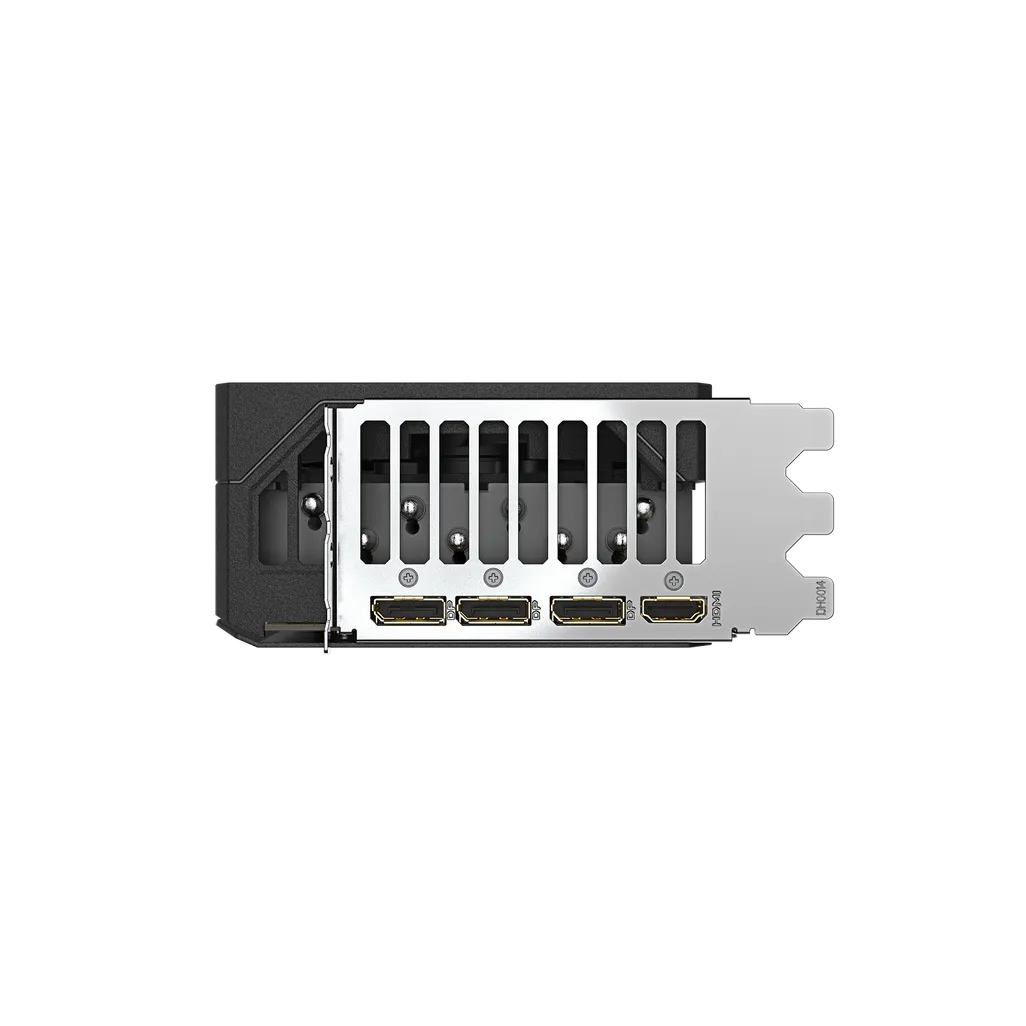

OutputDisplayPort 2.1b *3
HDMI 2.1b *1 -
Accessories1. Quick guide
2. Warranty registration
3. 1x 12V-2x6 to 2x PCIe 8pin adapter
4. AORUS identity stickers
5. AORUS metal sticker
6. Versatile VGA holder
7. Versatile VGA holder manualHAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
