Gigabyte
GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G
GeForce RTX™ 5070 Ti WINDFORCE OC SFF 16G
Couldn't load pickup availability
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070 Ti
- Integrated with 16GB GDDR7 256bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- Dual BIOS (Performance / Silent)
- NVIDIA SFF-ready
- Reinforced structure
- Versatile VGA holder
CORE CLOCK
2497 MHz (Reference: 2452 MHz)
-
Graphics ProcessingGeForce RTX™ 5070 Ti
-
Core Clock2497 MHz (Reference: 2452 MHz)
-
CUDA® Cores8960
-
Memory Clock28 Gbps
-
Memory Size16GB
-
Memory TypeGDDR7
-
Memory Bus256 bit
-
Card BusPCI-E 5.0
-
Digital max resolution7680 x 4320
-
Multi-view4
-
Card sizeL=304 W=126 H=50 mm
-
PCB FormATX
-
DirectXDirectX 12 API
-
OpenGLOpenGL 4.6
-
Recommended PSU750W
-
Power Connectors16 pin*1
-

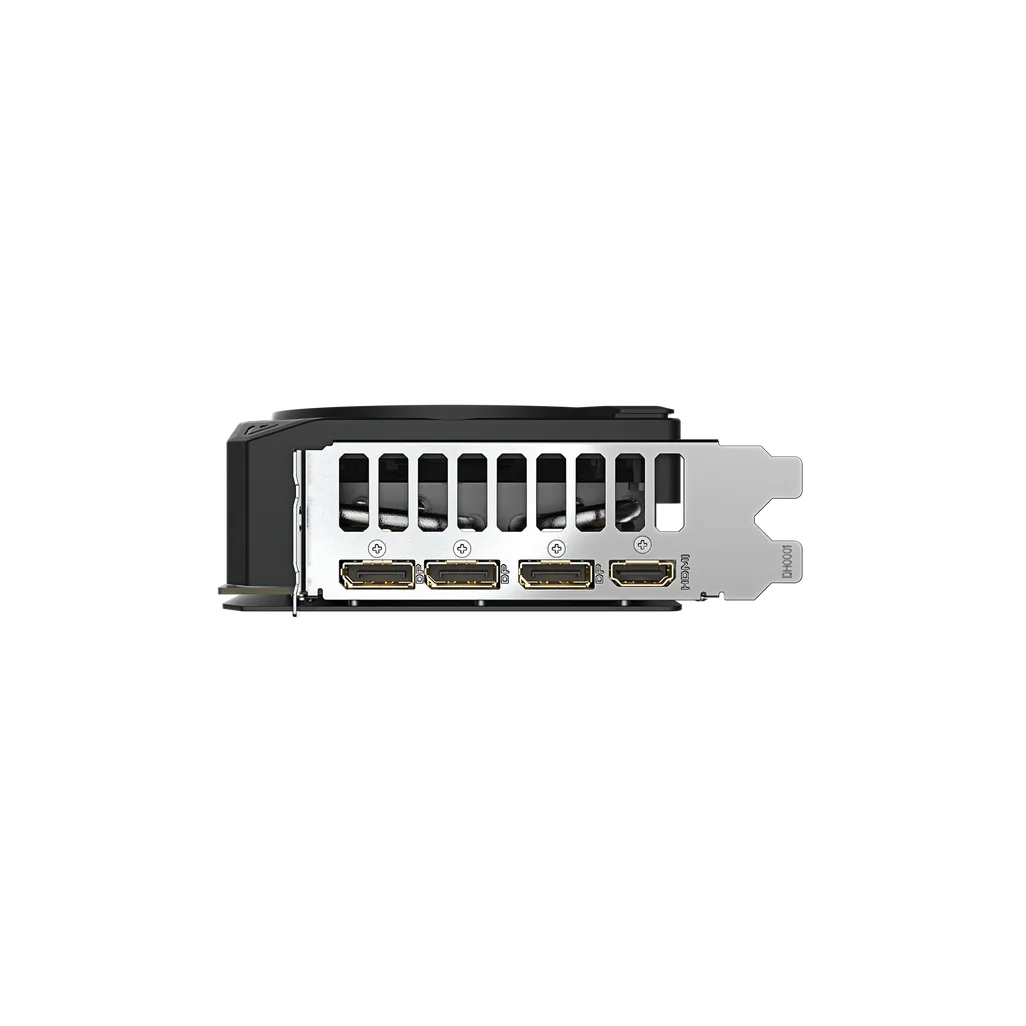

OutputDisplayPort 2.1b x3
HDMI 2.1b x1 -
Accessories1. VGA manual
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
3. Versatile VGA holder
4. Versatile VGA holder manualWINDFORCE
COOLING SYSTEMThe WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

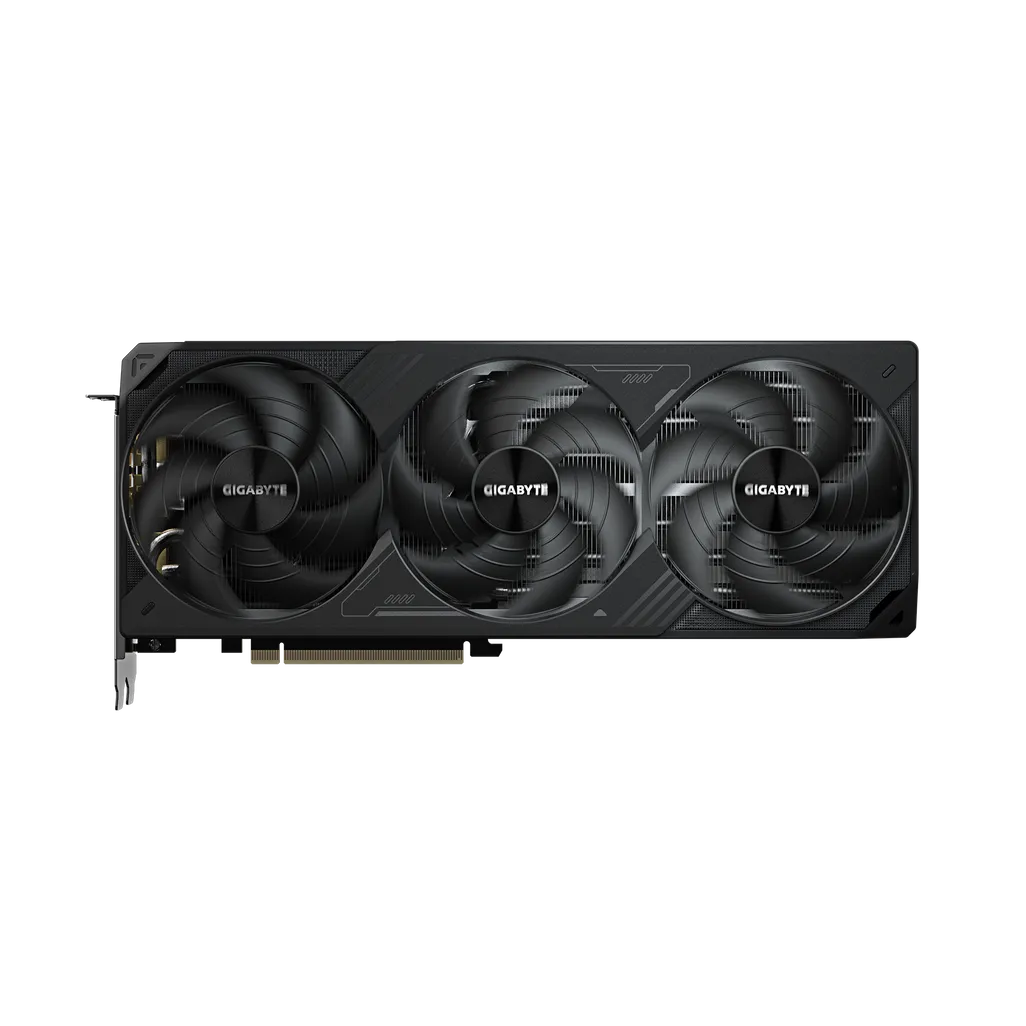

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

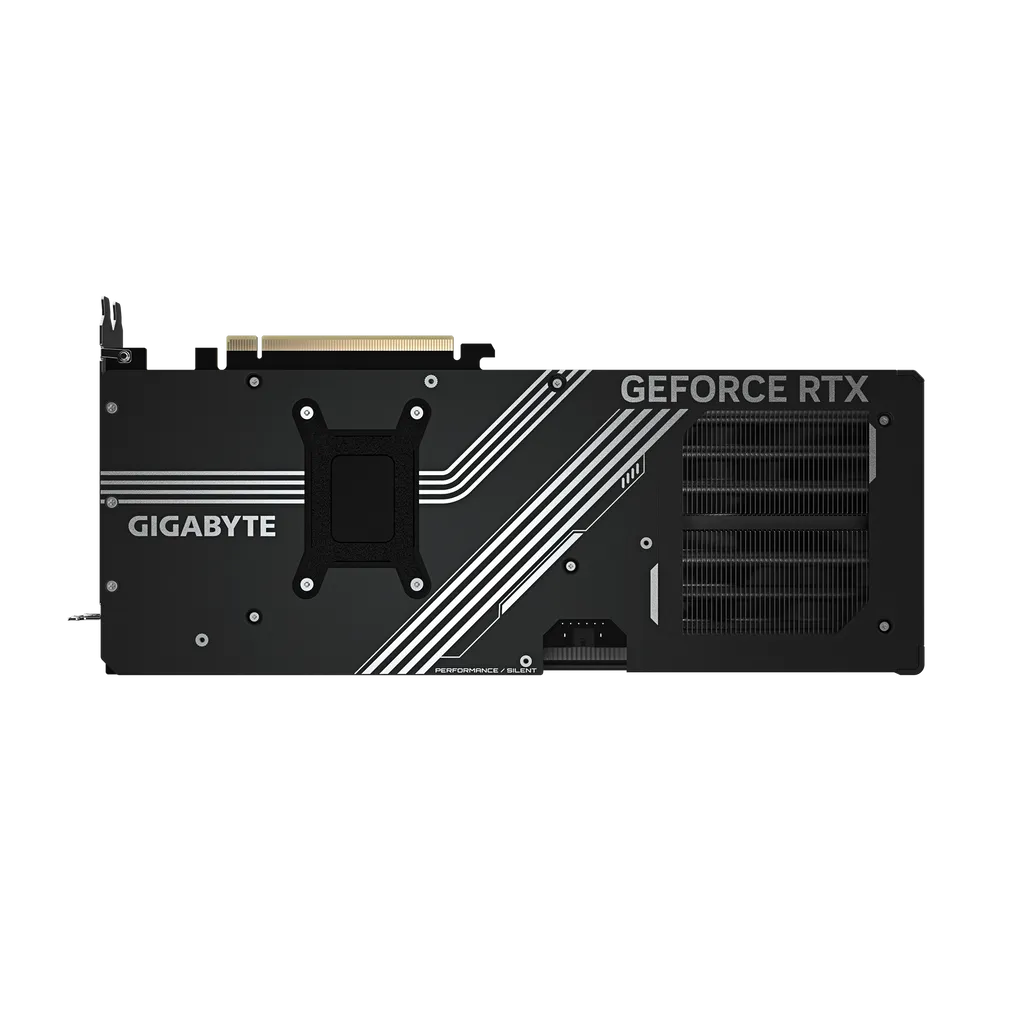

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integri
