Gigabyte
GeForce RTX™ 5070 WINDFORCE OC SFF 12G
GeForce RTX™ 5070 WINDFORCE OC SFF 12G
Couldn't load pickup availability
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070
- Integrated with 12GB GDDR7 192bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- NVIDIA SFF-ready
- Reinforced structure
CORE CLOCK
2542 MHz (Reference card : 2512 MHz)
-
Graphics ProcessingGeForce RTX™ 5070
-
Core Clock2542 MHz (Reference card : 2512 MHz)
-
CUDA® Cores6144
-
Memory Clock28 Gbps
-
Memory Size12 GB
-
Memory TypeGDDR7
-
Memory Bus192 bit
-
Card BusPCI-E 5.0
-
Digital max resolution7680x4320
-
Multi-view4
-
Card sizeL=282 W=110 H=50 mm
-
PCB FormATX
-
DirectXDirectX 12 API
-
OpenGL4.6
-
Recommended PSU750W
-
Power Connectors16 Pin*1
-

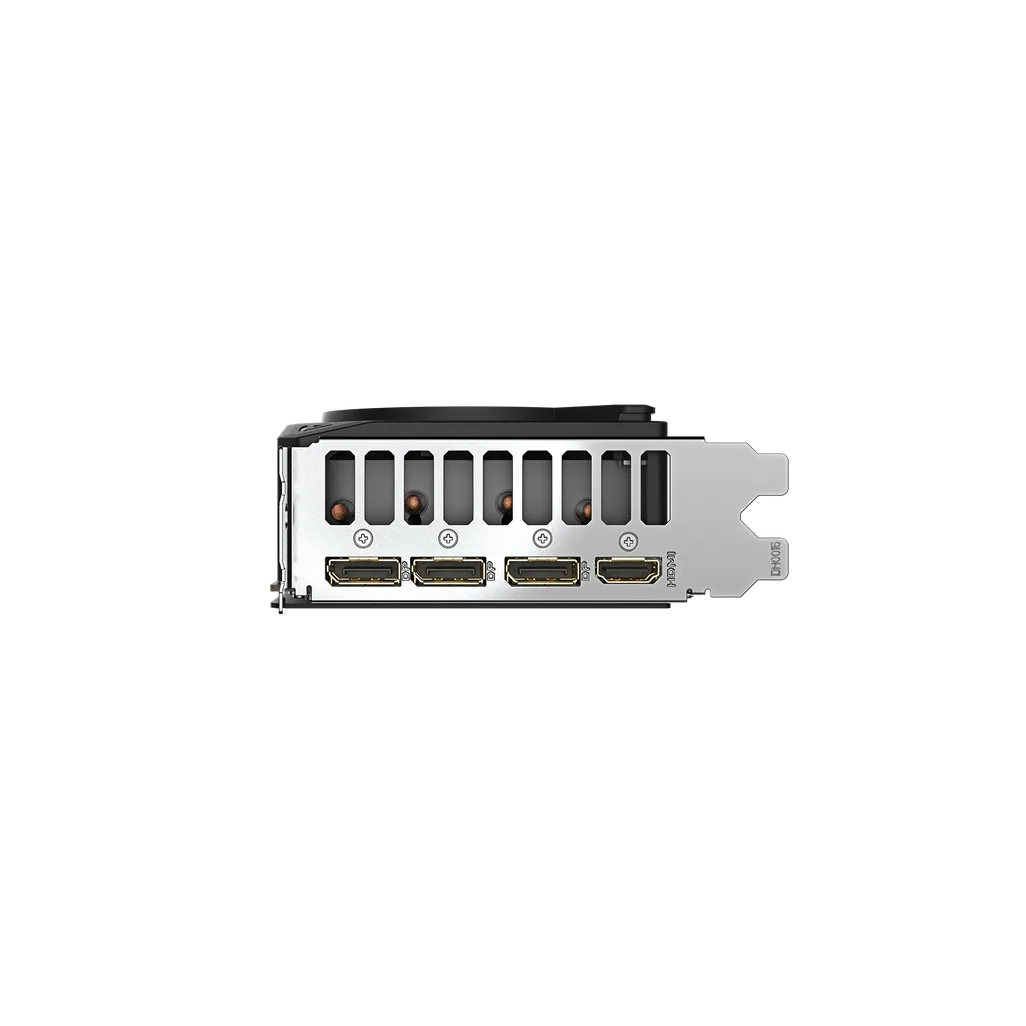

OutputDisplayPort 2.1b *3
HDMI 2.1b *1 -
Accessories1. Quick guide
2. 1x 12V-2x6 to 2x PCIe 8pin adapterWINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
NVIDIA SFF-READY
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

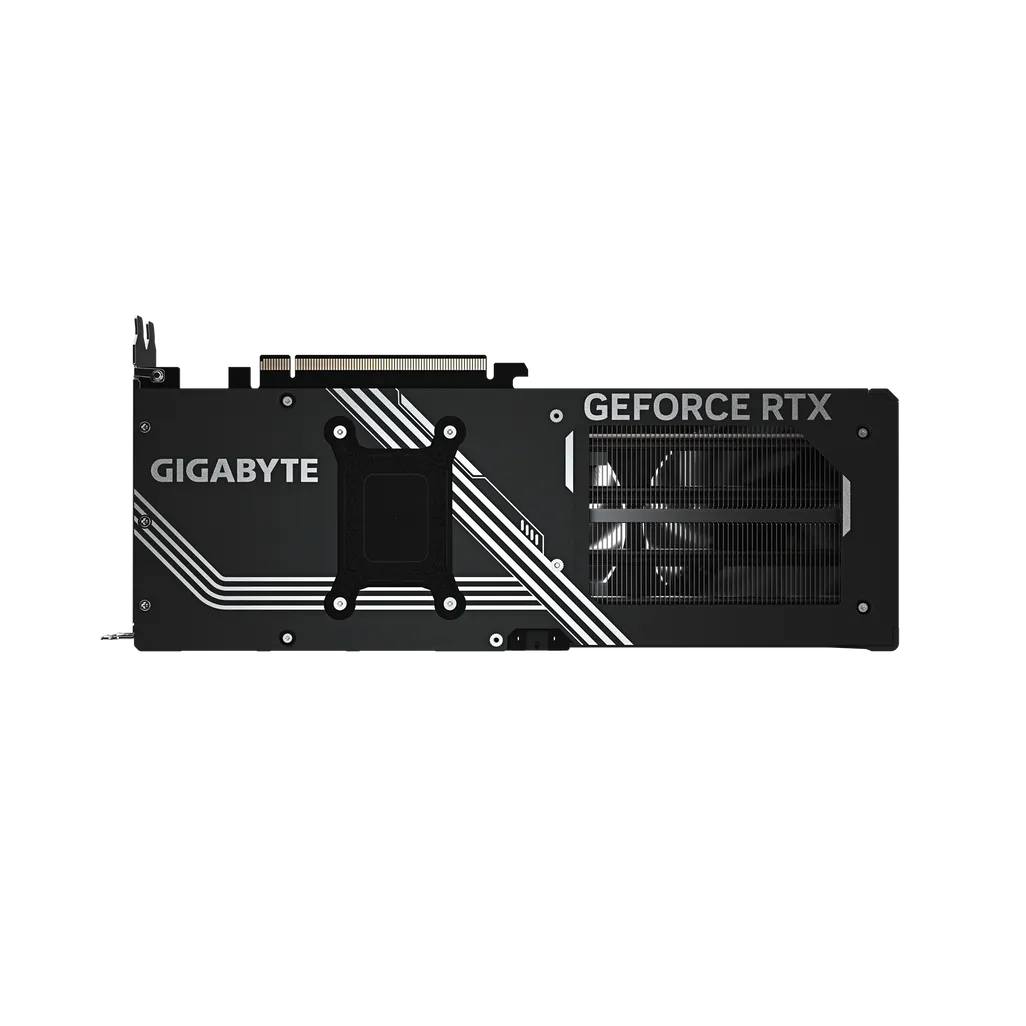

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
