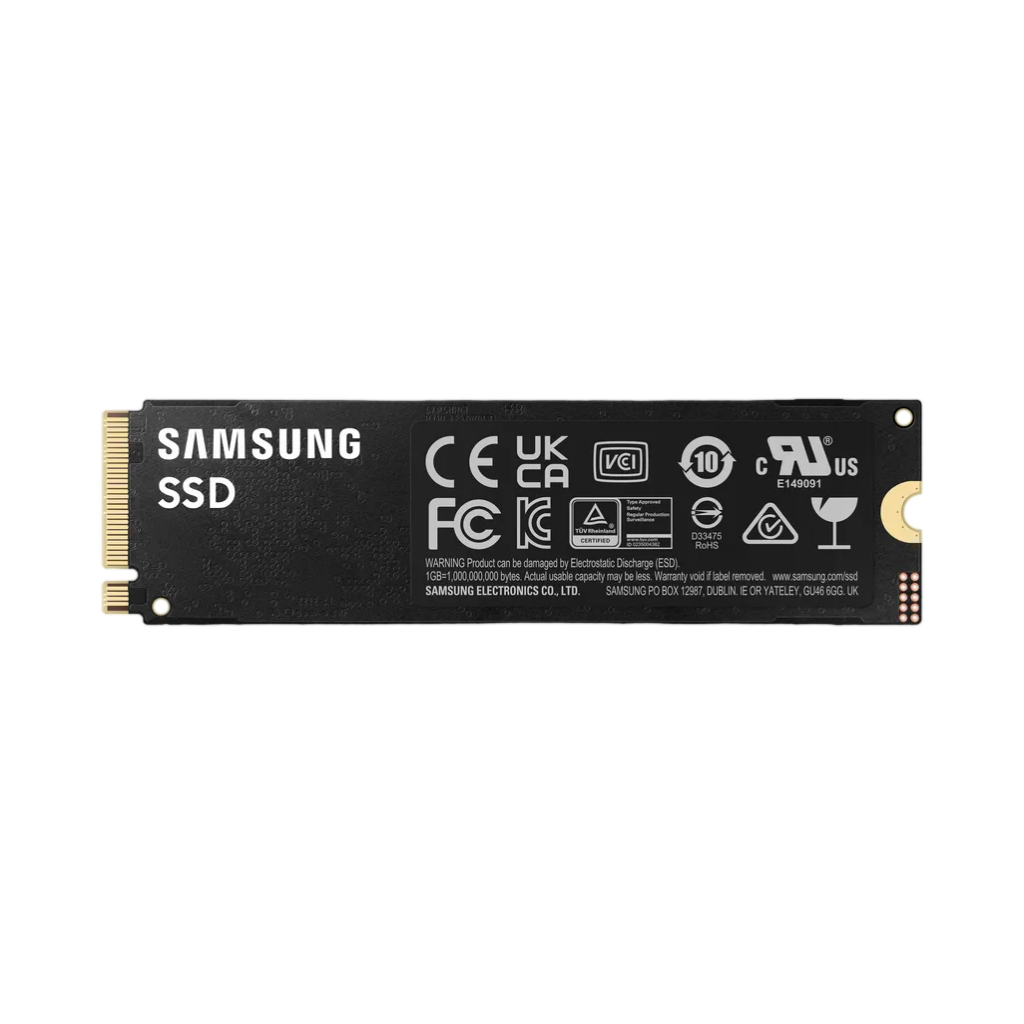

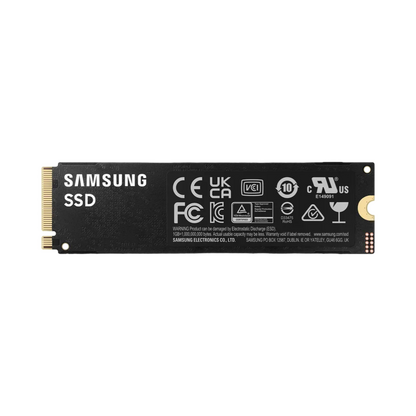

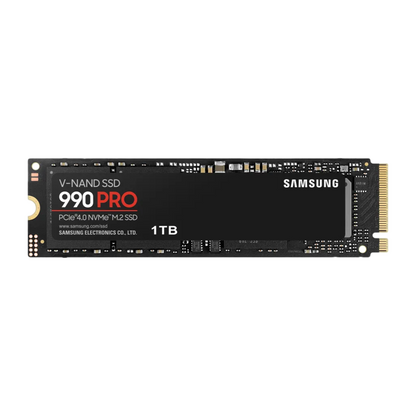

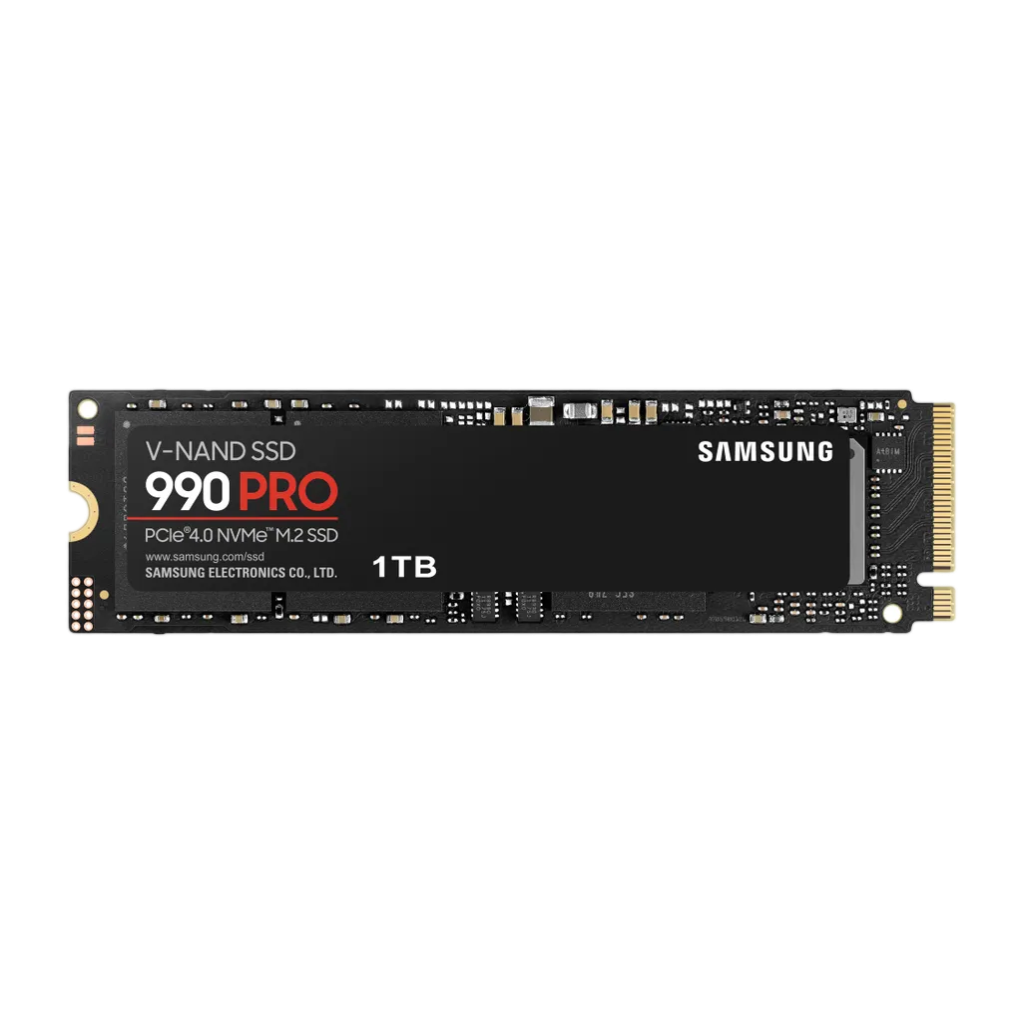

Samsung 990 PRO NVMe M.2 SSD 1TB

The Ultimate SSD

Reach max performance of PCIe® 4.0.Experience longer-lasting, opponent-blasting speed.The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

PCIe 4.0 speed maximized

Huge speed boost. 40%" and 55%" faster random read/write speeds than 980 PRO - up to 1400K/1550K IOPS, while sequential read/write speeds up to 7450/6900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

Breakthrough power efficiency

More power-efficient performance.Higher performance usually consumes more power. But, 990 PRO uses less power with over 50%" improved performance per Watt over 980 PRO.This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

Smart thermal solution

Speed beyond the heat.The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance.The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.

The champion maker

The best gameplay experience.A more than 55%" improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.

Specifications

Interface

PCIe Gen 4.0 x4, NVMe 2.0

Sequential Read

Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Warranty

5-year Limited Warranty or 600 TBW Limited Warranty

Application

Client PCs, Game Consoles

Weight

Max 9.0g Weight

Dimension (W x H x D)

80 x 22 x 2.3 mm

General Feature

Application

Client PCs, Game Consoles

Capacity

1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe Gen 4.0 x4, NVMe 2.0

Dimension (W x H x D)

80 x 22 x 2.3 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND TLC

Controller

Samsung in-house Controller

Cache Memory

Samsung 1GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Random Read (4 KB, QD32)

Up to 1,200,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4 KB, QD32)

Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4 KB, QD1)

Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4 KB, QD1)

Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (System Level)

Average: 5.5 W*Maximum: 7.8 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 50 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit

Not Available

Software

Management SW

Magician Software for SSD management

Warranty

5-year Limited Warranty or 600 TBW Limited Warranty
